OVERVIEW

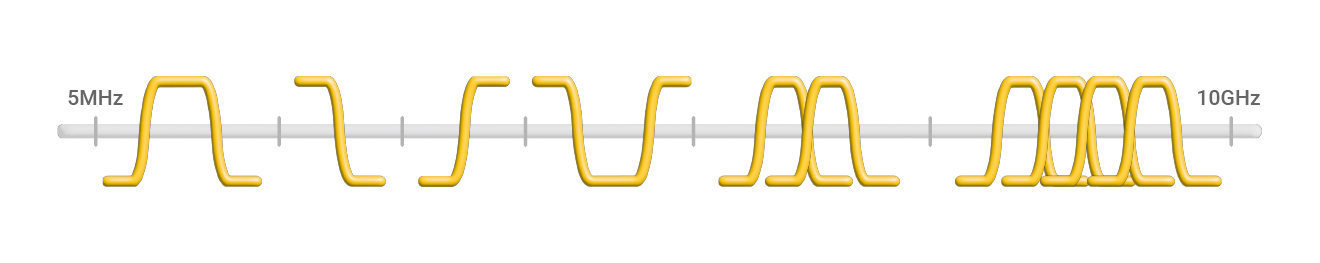

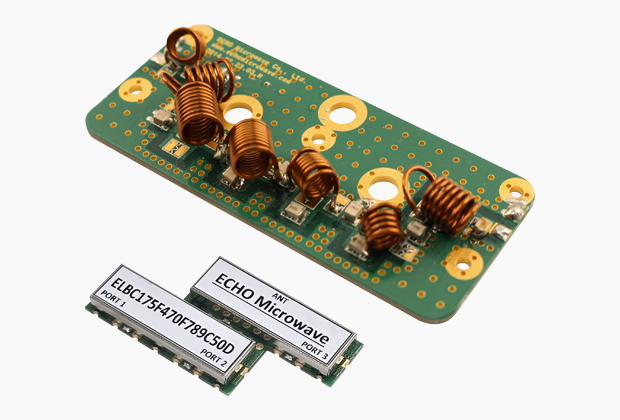

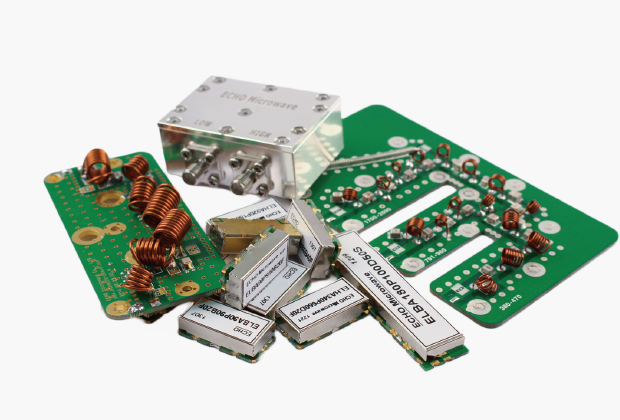

ECHO Microwave's LC Filters(Lumped Element) are available over the frequency range of 5MHz to 10GHz. These products offer small size and high performance. As per our other filter devices, our LC designs can be individually customized to meet specialized requirements and input/output connector configurations, in addition to standard packages.

Lumped element designs are best suited for applications where size and weight are critical. Our filter engineers are experts in Lumped Element design techniques and use a number of innovative methods to meet today’s demanding specifications. In addition, we provide LC diplexers with High-Q value and we can design it with high power up to 200W.

FEATURE

  • 5MHz to 10GHz Design available
  • Custom and Dielectric Resonator and Pin type Design available
  • Connectorized Type available
  • BPF, LPF, HPF, Band Rejection Filter, Duplexer, Diplexer and Multiplexer available
  • Excellent Temperature Stability (-40 ~+80 Degree)
  • Power Handling up to 200Watt
  • Commercial, Navigation radar and Military Applications
  • Small Package and Cost Effective Solution

SELECTION GUIDE

ELBA1100P300C40E (LC Filter)
ELBA
ELHA
ELLA
ELRA
ECHO L/C Bandpass Filter
ECHO L/C Highpass Filter
ECHO L/C Lowpass Filter
ECHO L/C Band Rejection Filter
1100 Center Frequency
P300 Pass bandwidth 300MHz
C Insertion Loss 1.5max.(According to Alphabet order)
40 Attenuation 40dB min
E E Package
ELEB98F161P22F23C50BQ (LC Duplexer)
ELB
ELEB
LC Duplexer
LC Encased Duplexer
98 Center Frequency for Low
F Forward type
R Reverse type
161 Center Frequency at High
P22 Pass bandwidth 22MHz at Low
F23 Passband width 23MHz at High
C Insertion Loss 1.5max.(According to Alphabet order)
50 Attenuation 50dB min
A
B
C
D
E
F
SMA Type
N-Type
DIN Type
QMA-Type
TNC-Type
BNC -Type
