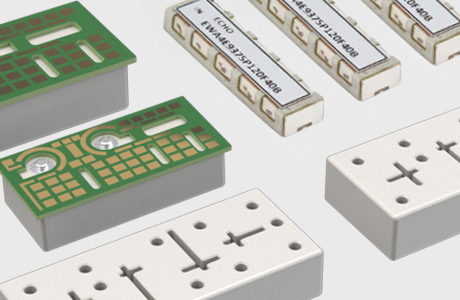

ECHO Microwave provides ceramic waveguide filters and duplexers (Transverse Electric Mode) up to
18GHz. TE Mode filter has no electric field in the direction of propagation and there is only a magnetic
field along the direction of propagation.
This filter has the advantage for high frequency bands, but the difference from SIW filter is that it is
suitable for a narrow bandwidth and it has a steep rejection more than SIW filters. We can offer the
surface-mount and connectorized designs in a small size and at low cost compared to cavity or waveguide
filters.
ECHO Microwave's design and manufacturing processes are subject to rigorous quality assurance
procedures, which differentiate our products from those of our competitors. All of our items
come with a 2-year guarantee and are RoHS compliant.
Feature
Part Number
|
Frequency
(MHz)
|
I.L in BW
(dB. max.)
|
R.L in BW
(dB. min.)
|
Attenuation
(dB. min.)
|
Imp
(ohms)
|
INQUIRY CLEAR |
---|---|---|---|---|---|---|
EHMA8C5850P50E15B | 5825~5875 | 2.5 | 15 | 15 @ 5795MHz 15 @ 5915MHz |
50 | |
EHMA8D9000P1000D5B | 8500~9500 | 2 | 12 | 30 @ 7600MHz 5 @ 10300MHz |
50 | |
EHMA8C8825P400D20B | 8625~9025 | 2 | 15 | 40 @ DC~6775MHz 20 @ 6725~8000MHz 20 @ 9685~11650MHz |
50 | |
EHMA8D9500P1000D10B | 9000~10000 | 2 | 12 | 30 @ 8300MHz 10 @ 10600MHz |
50 | |
EWA4E9375P120F40B | 9315~9435 | 3 | 12 | 35 @ 6000~9175MHz 35 @ 9575~13000MHz |
50 | |
EHMA8C10070P60E40B | 10040~10100 | 2.5 | 15 | 40 @ DC~9470MHz 40 @ 10670~11300MHz |
50 | |
EHMA8C10200P30F30B | 10185~10215 | 3 | 15 | 30 @ 10050MHz 30 @ 10350MHz |
50 | |
EHMA8C10520P30F30B | 10505~10535 | 3 | 15 | 30 @ 10370MHz 25 @ 10670MHz |
50 | |
EHMA8C10520P30F30B | 10505~10535 | 3 | 15 | 30 @ 10370MHz 30 @ 10670MHz |
50 | |
EHMA8C10520P5K20B | 10517.5~10522.5 | 5.5 | 12 | 40 @ 10380MHz 20 @ 10450MHz 40 @ 10730MHz |
50 | |
EHMA8C10550P30F30B | 10535~10565 | 3 | 15 | 30 @ 10400MHz 30 @ 10700MHz |
50 |
