NEW PRODUCT – ESEC1800F1920F6000SG350ED60K / Suspended Substrate Stripline Triplexer

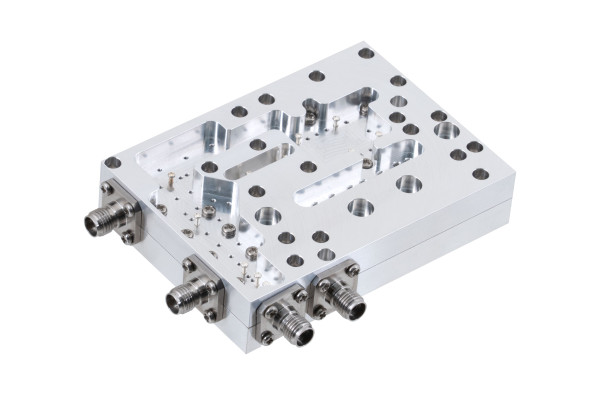

ECHO Microwave introduces the ESEC1800F1920F6000SG350ED60K, a high-performance Suspended Substrate Stripline TPX(Triplexer) engineered for exceptional frequency management in broadband RF and high-frequency systems. Designed with advanced SSS technology, this compact solution provides superior signal isolation and integrity across three distinct bands. Its rugged aluminum construction and precision connectors ensure reliable performance in the most demanding aerospace, defense, and telecommunication environments.

Key Features

- Passband: 450 ~ 1800MHz / 1920 ~ 5650MHz / 6000 ~ 18000MHz
- Low insertion loss: 2.5dB / 2.5dB / 2.0dB
- Return loss: 9.5dB
- Attenuation:

60 @ DC~300MHz
60 @ 2150~18000MHz
........................
60 @ DC~1620MHz
60 @ 6650~18000MHz
........................
60 @ DC~5150MHz

- Power handling: 1W max.
- Size: 77.5 × 56 × 16.16 mm
- Connectorized design: 2.92 mm (Female)
- Operating temperature: -40°C to +85°C

For detailed specifications and performance graphs, please refer to the attached datasheet.

Email: inquiry@echomicrowave.com | TEL: +82-31-337-3070
