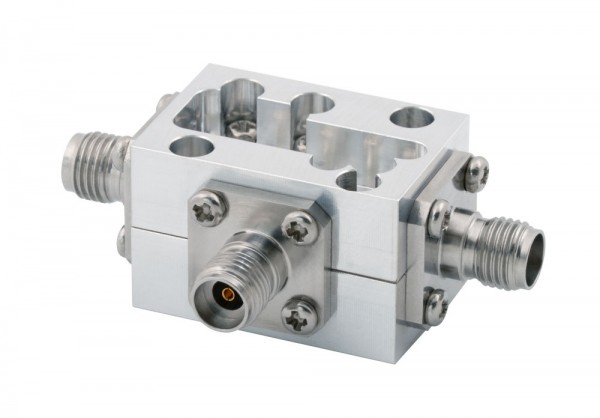

ECHO Microwave introduces the ESEB23F29G6BB40K, a high-performance Suspended Substrate Filter engineered to deliver exceptional performance in broadband RF and high-frequency systems. Designed with an ultra-wide passband and high Q-value architecture, this filter ensures low insertion loss, excellent return loss, and outstanding out-of-band rejection. It is ideally suited for demanding applications across military communications, radar detection systems, aerospace platforms, and satellite communication networks, where reliability, precision, and durability are critical for mission success.

- Passband: DC ~ 23GHz / 29 ~ 40GHz
- Extremely wide passband with high Q-value
- Low insertion loss: ≤ 1.0dB
- Return loss: ≥ 9.0dB
- Attenuation: 40 @ 29 ~ 40GHz / 40 @ DC~23GHz
- Power handling: 1W max.
- Compact size: 25 × 17 × 16.16 mm
- Connectorized design: 2.92 mm (Female), white chromate finish
- Operating temperature: -40°C to +85°C

With its ultra-wideband coverage, excellent out-of-band rejection, and compact design, the ESEB23F29G6BB40K delivers reliable, top-tier performance for next-generation communication systems.

For detailed specifications and performance graphs, please refer to the attached datasheet.
